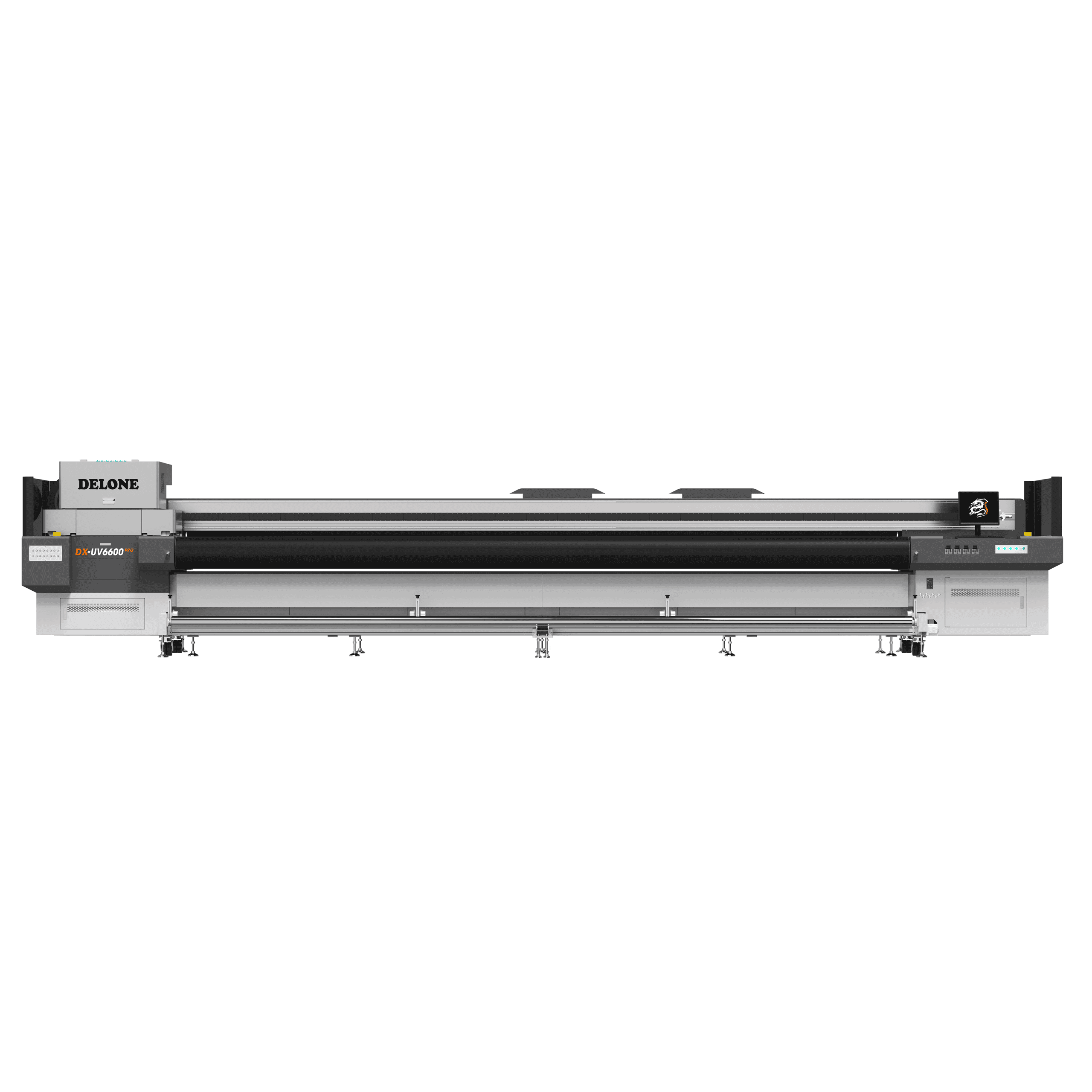

| Model | Delone DX UV6600PRO UV Roll-to-roll |
| Print Head (optional) | Konica 1024A (6pl) / 1024i (13pl) |
| Machine Dimensions | 9420 x 2166 x 1800m |
| Ink Color | CMYK /LC /LM/ W |
| Drying System | UV LED with water cooling system |
| RIP Software | Onyx, PhotoPrint Delone Edition, Caldera |
| Printing Area | 6600mm |
| Printing Speed | 4 Pass(6 Row) – 219 – 263 sqm/h |
| 6 Pass(6 Row) – 146 – 176 sqm/h |
| 8 Pass(6 Row) – 110 – 132 sqm/h |
| Cleaning System | Positive & Negative Pressure System |
| Automatic Flash-Cleaning Anti-Clogging Function |
| Ink Supply System | Refillable During Printing Without Interruption |
| Weight | 7980 kg |
| Power Supply | 3PH AC380V 50/60HZ 27KW 70A |
